Low-cost, mixed signal, test development ATE system
DMT è progettato per rispondere alle esigenze di caratterizzazione di dispositivi analogici e mixed-signal in ogni fase del ciclo di vita del prodotto: dalla ricerca e sviluppo (R&D) fino ai test di pre-produzione e post-produzione.
Grazie a un mainframe modulare con fino a 5 slot, puoi integrare diversi strumenti in un’unica piattaforma flessibile e scalabile, adattabile a ogni tipo di esigenza.
Il controllo avviene tramite un software grafico intuitivo, che non richiede competenze di programmazione: ideale sia per i progettisti (Designer) che per i Test Engineer (TE).
Reasons Why
Product Presentation

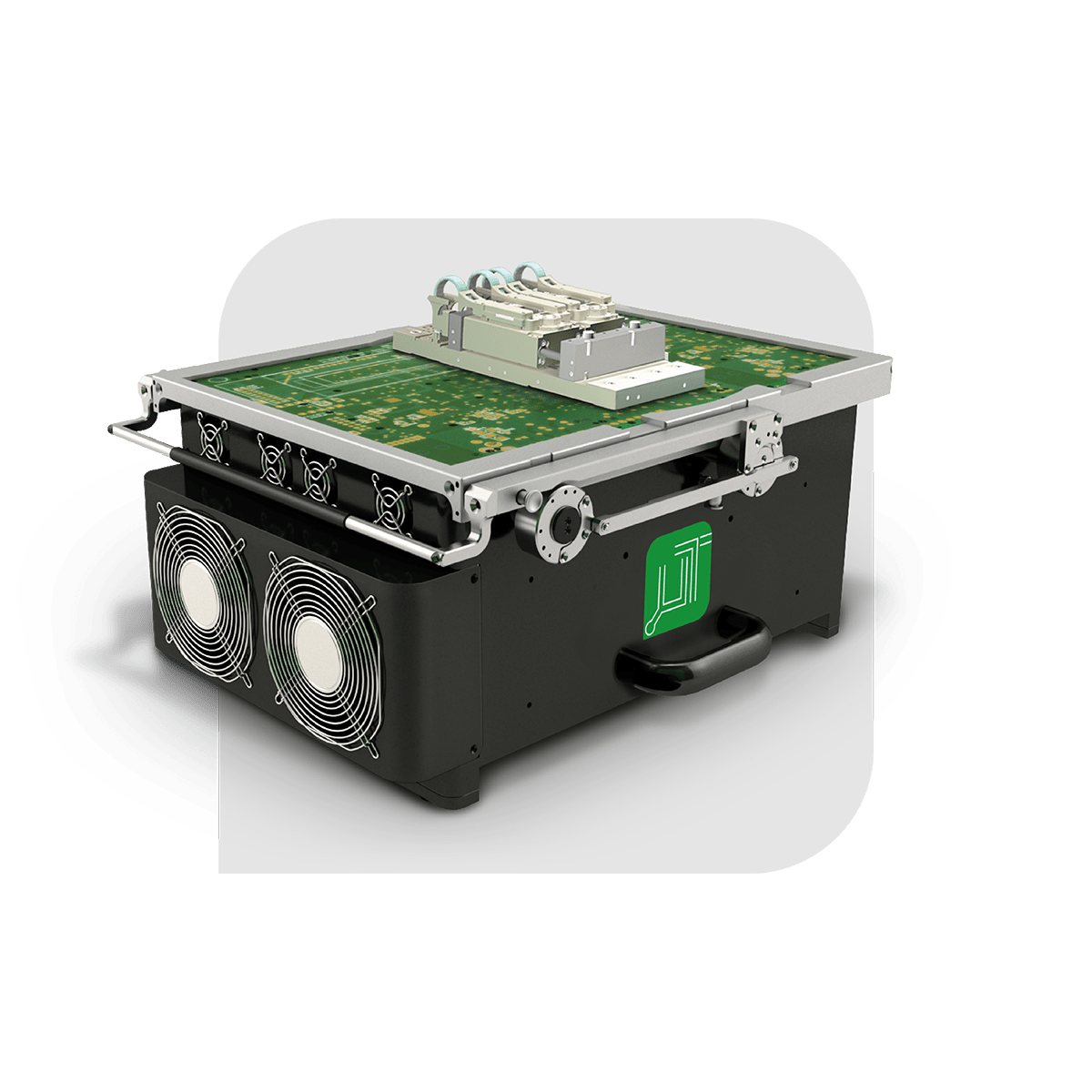

The DMT from Microtest is a compact, mixed‑signal and digital automatic test equipment (ATE) designed for efficient IC validation. Thanks to its ultra‑high hardware integration, it delivers more resources than larger testers while occupying the lowest footprint on the market
A key feature is Kronos, an intelligent software toolset that automatically converts test descriptions into optimized test code, drastically cutting development time and accelerating time‑to‑market—new ICs can be validated in just a few weeks.
The system supports up to five slots with flexible configurations.
Each slot offers:
DC sources: low‑power (±110 V, ±200 mA), medium‑power (±110 V, ±4 A), and floating high‑power (±80 V, ±10 A)
Digital I/O: up to 256 channels per slot (−1.25 V to 6.75 V, 50 mA drive, active load ±12 mA), with 64 M pattern memory and 32 M DSIO
Time‑measurement unit & differential metering (up to 32 mux4) plus AWG & digitizer (up to 16 per slot)
microtest.net

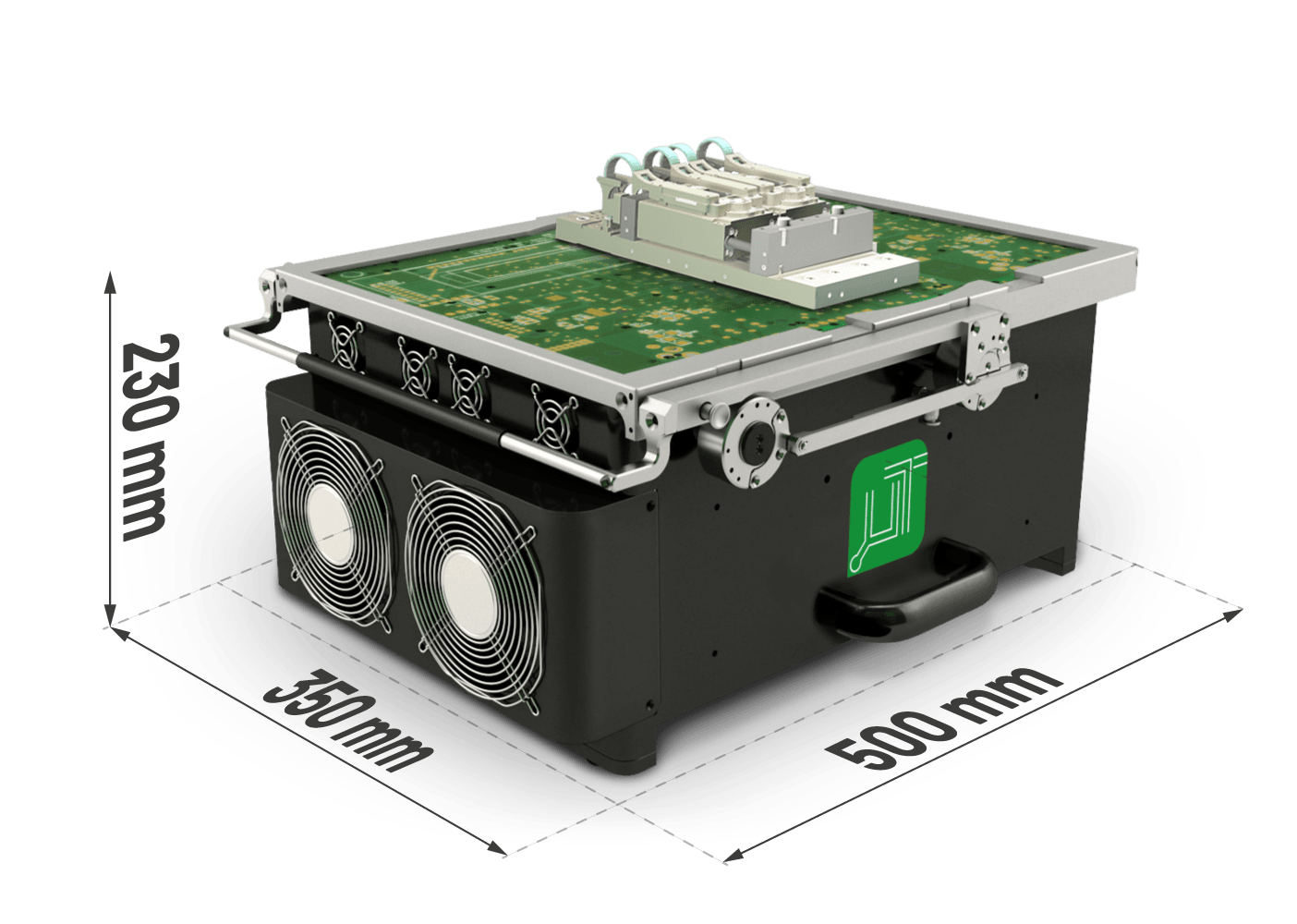

Measuring just 230 mm × 350 mm × 500 mm, the DMT excels in lab or pre‑production environments where space is tight, resources must be dense, and testing must be fast and modular.
DMT EVO
Dimensions
Analog/Power
DCS LP : 80 channels, - 80V / +110V @ ± 200mA
DCS MP :40 channels, - 80V / +110V @± 4A
Digital
256 PPMU per board
Measurements Instruments
8 channels 80MSPS Digitizer, TMS
8 Differential Meter
Kronos is a Software Toolset, which generates better and faster Test Programs, through automatic translation of test descriptions to code.
